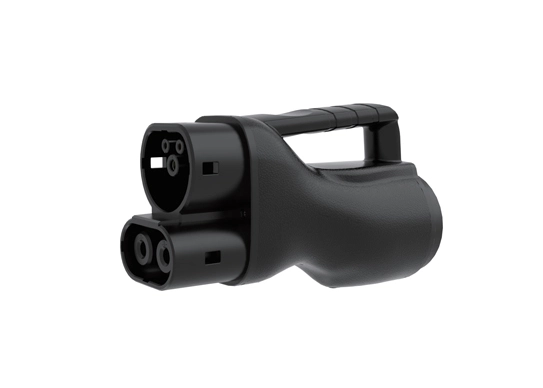

GB/T to CCS2 Adapter

AUPINS makes this adapter for Hong Kong & Macao CCS2 vehicles entering China's mainland area for using GB/T DC fast charger to charging the CCS2 car.AUPINS is the original manufacturer of the GBT to CCS2 adapter, with invention patent protection, comply with GB/T20234.3-2015 and DIN70121/ISO15118 to convert GB/T to CCS2 DC charging. With outlooking patent, light weight, and compact size IP55 excellent waterproof, With UL94 V0 fire rating. This adapter with excellent compatibility on nearly all prevailing brand CCS2 cars and almost 99% brands of GB/T DC fast charger.

Get a Quote

Features of GB/T to CCS2 Adapter

  • TUV Lab Tested (with official report)

  • No extra cell required

  • With LED lamp indicating the charging status

  • Offer USB port (type C)for updating firmware

  • PNC supported


Specifications of GB/T to CCS2 Adapter

DC adapter

Code

Type

Current（A)

Voltage MAX(V)

Weight(kg/Pound)

13001

AP-CHATGB-125A

125A

900

2kg/4.7LB

13002

AP-CCS1TGB-200A

200A

900

2.3kg/5.2LB

13003

AP-CCS2TGB-200A

200A

900

2.3kg/5.2LB

13004

AP-CCS2TGB-250A

250A

900

2.3kg/5.2LB

13005

AP-GBTCCS2-250A

250A

1000

1.2kg/2.6LB


Applications of GB/T to CCS2 Adapter

1. Mechanical properties:

Weight(kg/Pound): ≈1.2kg/2.6LB

External interface: We offer USB port for updating firmware/We offer 12V port to input power supply


2. Environmental performance:

Protection degree: IP55

Flame-retardant grades: UL94 V-0

Operating Temperature: -20℃~45℃/-4°F~113°F

Storage Temperature: -40°Cto +85°C/-40°Fto +185°F


3. Electrical performance:

Nominal current: 250A

Max current: 350A

Max power: 120kW

Voltage: 1000Vdc(max)
