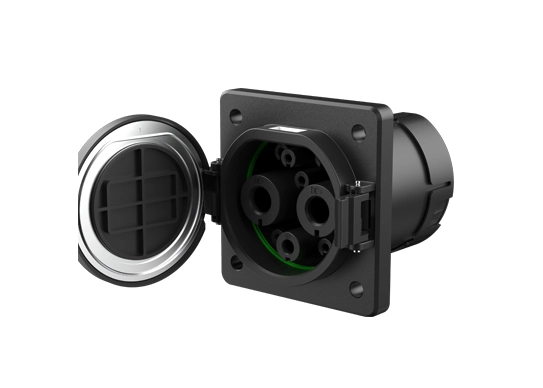

GB/T DC Charging Socket

GB/T EV Charging Socket conforms to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in China, correctly and effectively with high compatibility.


Get a Quote

Features of GB/T DC Charging Socket

  • Conform to the provisions and requirements of GB/ T 20234.2-2015

  • Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it

  • Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof

  • Excellent protection performance, prodection grade achieved IP55 (working condition)


Applications of GB/T DC Charging Socket

1. Mechanical properties:

Insulation resistance: ＞1000MΩ (1000V.dc)

Insertion and extraction force: <100N

Mechanical life: ≥10,000 times (no load)


2. Environmental performance:

Working temperature: -30℃～50℃

Shell material: thermoplastics, flame retardant grade UL94-0

Contact - tube: copper alloy, silver plated


3. Electrical performance:

Rated current:80A, 125A, 200A, 250A

Rated voltage: 750V

Insulation resistance: >2000MΩ (DC1000V)

Pins temperature rise:<50K

Withstand voltage: 4500V (DC+/DC-/PE)

Contact impedance: 0.5mΩMax


Products
AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
AUPINS
Phone:
+86-17751766310
E-mail:
rfq@aupins.com
Add:
No.55 Innovative platform, Shaohua Gongfang, Pingliang Dajie, Jianye District, Nanjing
CONTACT
AUPINS TECHNOLOGY is an independent innovative enterprise specializing in the development and production of electric connector products.

Related EV Charging Connectors & Pins

IEC AC Charging Socket
IEC AC Charging Socket
7KW IEC 62196 Type2 EV Charger
7KW IEC 62196 Type2 EV Charger

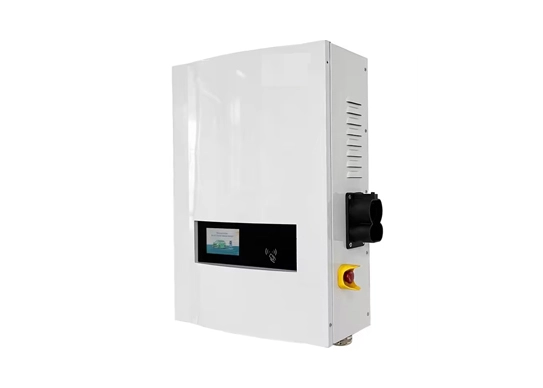

DC Charging Station-DD
