GB/T DC Charging Connector

AUPINS GB/T DC Charging Connector is a product developed in accordance with GB/T 33594-2017. The handle design conforms to the principles of ergonomics and feels comfortable. The unique heat dissipation structure design greatly reduces the operating temperature of the charging gun. The built-in switch and electronic lock module have more stable quality and performance and are easier to repair and replace. The locking bayonet anti-loosening device can ensure a stable and reliable connection.

Get a Quote

Features of GB/T DC Charging Connector

  • The handheld design is ergonomic and comfortable

  • The product protection level is up to IP55

  • Provide OEM/ODM

  • We can customize the cable length, and color, and redesign it according to customer requirements


Specifications of GB/T DC Charging Connector

GB/T DC Charging Connector

Code

Type

Output current

Output voltage

Harness specification

Cable length

Color of DC gun shell

Resistance Value of Rc

Cable O.D

26001

AP-GDC-80A

80A

750V/1000V

20mm²

5.1m（customize）

White/Black

1000Ω

33.5±1

26002

AP-GDC-125A

125A

750V/1000V

35mm²

5.1m（customize）

White/Black

1000Ω

36.5±1

26003

AP-GDC1-200A

200A

750V/1000V

50mm²

5.1m（customize）

White/Black

1000Ω

37.5±1

26004

AP-GDC2-200A

200A

750V/1000V

70mm²

5.1m（customize）

White/Black

1000Ω

37.5±1

26005

AP-GDC1-250A

250A

750V/1000V

70mm²

5.1m（customize）

White/Black

1000Ω

40±1

26006

AP-GDC2-250A

250A

750V/1000V

80mm²

5.1m（customize）

White/Black

1000Ω

40±1

26007

AP-GDC3-250A

250A

750V/1000V

2*35mm²

5.1m（customize）

White/Black

1000Ω

30.5±1


Applications of GB/T DC Charging Connector

1. Mechanical properties:

Mated force: <140N

Mated cycles: 10000 Cycles (Unload)

Cable standard: GB/T 33594-2017;

Outer sheath material: black, rubber


2. Electrical performance:

voltage: 750V /1000V DC

current: 80A/125A/200A/250A

Insulation resistance: >2000MΩ

Withstand voltage: 3500V AC


3. Environmental performance:

Operate Temperature: -40℃ ~ +50℃

Pollution Degree: Level 3

IP Class: IP55

Flame class: UL94-V0


Products
AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
AUPINS
Phone:
+86-17751766310
E-mail:
rfq@aupins.com
Add:
No.55 Innovative platform, Shaohua Gongfang, Pingliang Dajie, Jianye District, Nanjing
CONTACT
AUPINS TECHNOLOGY is an independent innovative enterprise specializing in the development and production of electric connector products.

Related EV Charging Connectors & Pins

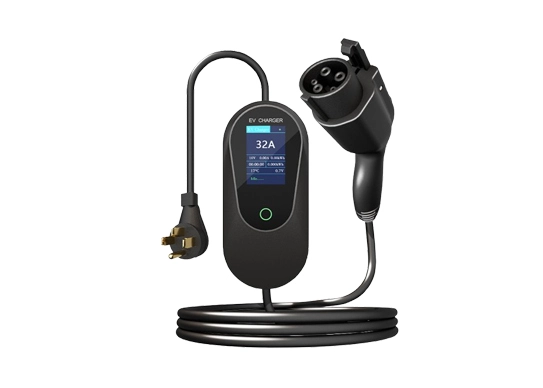

7KW Type 1 SAE EVSE Portable EV Charger
