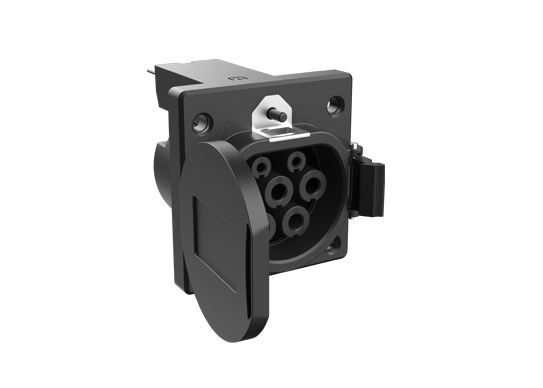

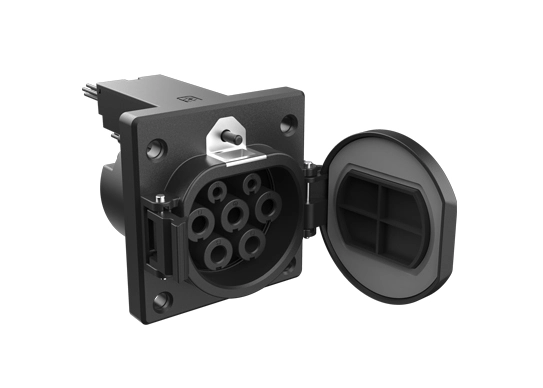

GB/T AC Charging Socket

GB/T EV Charging Socket conforms to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in China, correctly and effectively with high compatibility.


Get a Quote

Features of GB/T AC Charging Socket

  • Conform to the provisions and requirements of GB/ T 20234.2-2015

  • Beautiful appearance, prevention cap can be installed on the left side, the right side or the front of it

  • Reliable material, flame retardant, presssure proof, wear-resisting, impact resistance, high oil proof

  • Excellent protection performance, prodection grade achieved IP55 (working condition)


Applications of GB/T AC Charging Socket

1. Mechanical properties:

Insulation resistance: ＞1000MΩ (1000V.dc)

Insertion and extraction force: <100N

Mechanical life: ≥10,000 times (no load)


2. Environmental performance:

Working temperature: -30℃～50℃

Shell material: thermoplastics, flame retardant grade UL94-0

Contact - tube: copper alloy, silver plated


3. Electrical performance:

Rated current: 10A, 16A, 32A

Rated voltage: 250V/440V

Insulation resistance: > 500MΩ

Pins temperature rise: <50K

Withstand voltage: 2500V

Contact impedance: 0.5mΩMax
