Robotic cable

Name: Robotic cable
Brand: Aupins Technology Co., Ltd.

Robotic cable is used in flexible occasions such as robot systems and mobile equipment, production lines, and robotic arms. Different insulation and sheath materials can be selected according to different strengths of wear-resistant and torsion-resistant environments. The flame retardant meets IEC60332-1-2, VW-1, and the product meets CE, UL2517, UL20276 and RoHS environmental protection standards.

Product features: Durable, oil resistance, abrasion resistance, weak acid, alkali resistance, halogen-free, low temperature and humidity resistance.

Applicable environment: -15 ℃ ~ +105 ℃

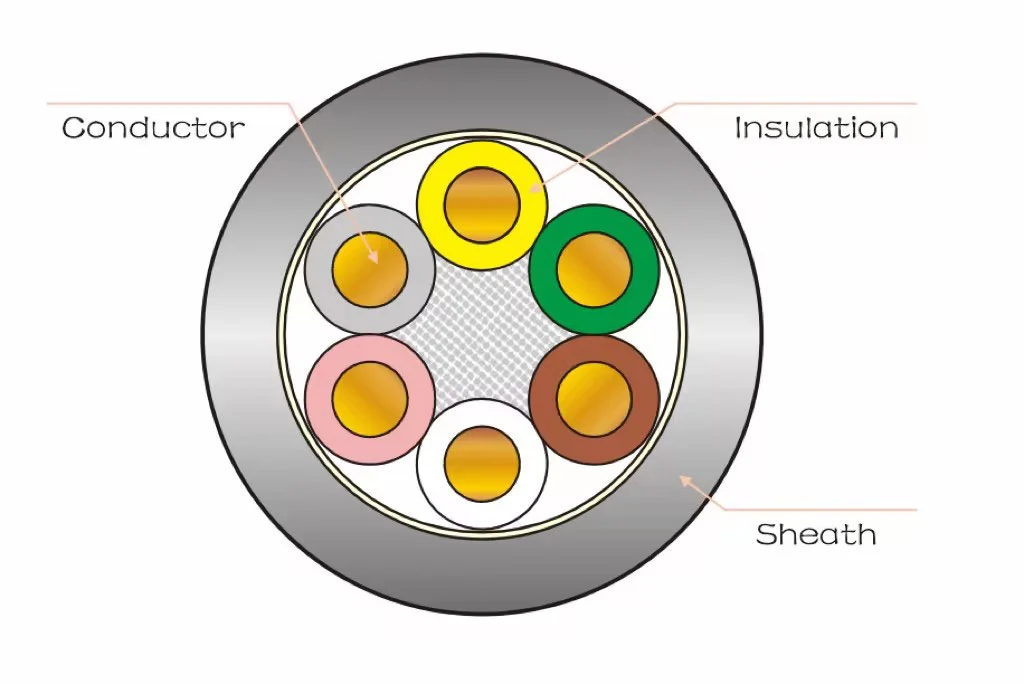

Conductor: Tinned annealed copper

Rated voltage: 300V, 600V

Insulation: ETFE/TPEE

Insulation resistance: 100MΩ.km(20℃)

Voltage withstand : AC 2.0kV/min

Sheath: Flame-retardant Heat-resistance PVC

Bending and twisting motion test: 10 million times, the twisting range can reach 270°

Get a Quote 

Specification of Robotic cable

Encoder cable	Product code	Specification	Outside diameter	Copper Content	Weight
ETFE-PVC	RFEC301.02.02.015	2×2×26AWG(0.15)	5.8	11	44
	RFEC301.03.02.015	3×2×26AWG(0.15)	6.4	14	54
	RFEC301.04.02.015	4×2×26AWG(0.15)	6.8	18	63
	RFEC301.06.02.015	6×2×26AWG(0.15)	7.7	25	79
	RFEC301.02.02.02	2×2×25AWG(0.2)	6.3	13	52
	RFEC301.03.02.02	3×2×25AWG(0.2)	6.7	18	61
	RFEC301.04.02.02	4×2×25AWG(0.2)	7.1	22	70
	RFEC301.05.02.02	5×2×25AWG(0.2)	7.6	26	80
	RFEC301.06.02.02	6×2×25AWG(0.2)	8.1	31	89
	RFEC301.08.02.02	8×2×25AWG(0.2)	9.3	40	117
	RFEC301.09.02.02	9×2×25AWG(0.2)	9.9	45	131
	RFEC301.16.02.02	16×2×25AWG(0.2)	11.8	74	182
TPEE-PVC	RFEC311.02.02.015	2×2×26AWG(0.15)	5.8	11	43
	RFEC311.03.02.015	3×2×26AWG(0.15)	6.4	14	53
	RFEC311.04.02.015	4×2×26AWG(0.15)	6.8	18	61
	RFEC311.06.02.015	6×2×26AWG(0.15)	7.7	25	77
	RFEC311.02.02.02	2×2×25AWG(0.2)	6.3	13	51
	RFEC311.03.02.02	3×2×25AWG(0.2)	6.7	18	60
	RFEC311.04.02.02	4×2×25AWG(0.2)	7.1	22	68
	RFEC311.05.02.02	5×2×25AWG(0.2)	7.6	26	78
	RFEC311.06.02.02	6×2×25AWG(0.2)	8.1	31	86
	RFEC311.08.02.02	8×2×25AWG(0.2)	9.3	40	114
	RFEC311.08.02.02	9×2×25AWG(0.2)	9.9	45	127
	RFEC311.16.02.02	16×2×25AWG(0.2)	11.8	74	175
	RFEC311.03.02.025	3×2×24AWG(0.25)	7.1	21	66
	RFEC311.04.02.025	4×2×24AWG(0.25)	7.6	26	77
	RFEC311.06.02.025	6×2×24AWG(0.25)	8.9	37	103
	RFEC311.08.02.025	8×2×24AWG(0.25)	10.2	48	134
TPEE-TPU	RFEC321.03.02.014	3×2×26AWG(0.14)	6.5	14	48
	RFEC321.04.02.014	4×2×26AWG(0.14)	6.8	18	54
	RFEC321.03.02.025	3×2×24AWG(0.25)	7.1	21	60
	RFEC321.04.02.025	4×2×24AWG(0.25)	7.6	26	68
	RFEC321.06.02.025	6×2×24AWG(0.25)	8.9	37	94
	RFEC321.08.02.025	8×2×24AWG(0.25)	10.2	48	123
AP can customize cables for customers, the products shown are only a part, and more models can be obtained online for more information
