Lamella Contact Pins
Lamella Contact Pins
Lamella Contact Pins
Lamella Contact Pins
Lamella Contact Pins
Lamella Contact Pins

Lamella Contact Pins

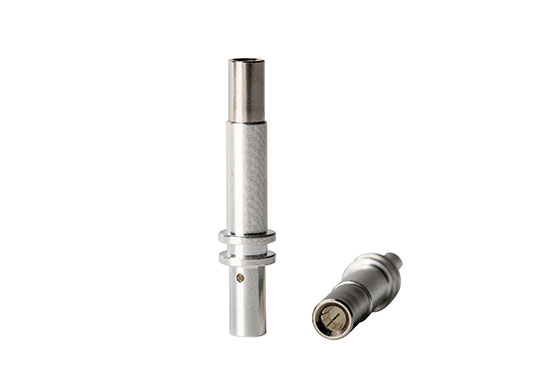

The contact system of lamella pins enables a reliable connection up to 120℃. The lamella contact pins are designed and made in a horn-like shape. AP team applies cutting and stamping process while making copper alloy bar into lamella structure. Its parallel structure ensure a stable low contact resistance for reliable current transmission.

Get a Quote

Features of Lamella Contact Pins


  • Mechanical life: ≧10000 times

  • High current

  • Compact structure

  • Soft mating force

  • Low contact resistance

  • High reliability

  • Application: electric vehicle、Energy storage

Specifications of Lamella Contact Pins

Product codeMale dimension(Ø)  (mm)Rated current       (A)Contact resistance≦(mΩ)Pulling force        ≤ (N)Temperature rise<(K)Maximum temperature (℃)Maximum time（H)
AP-LCP-LN-323.58320.510--15501208
AP-LCP-PE-162.7816
AP-LCP-PE-322.7832
MaterialBrass, Copper
Contact MaterialBeryllium bronze
Plating MaterialGold, silver
