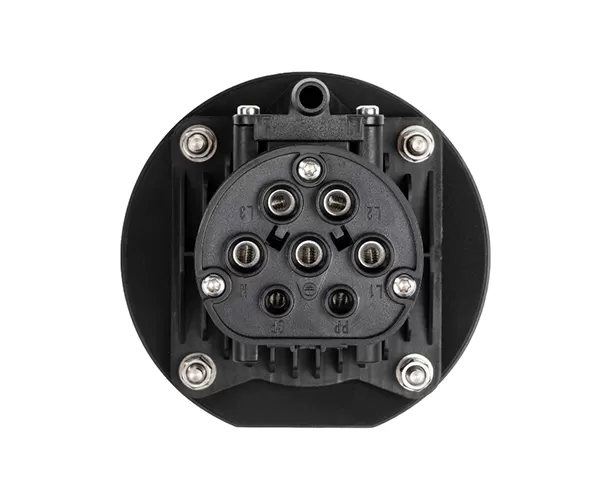

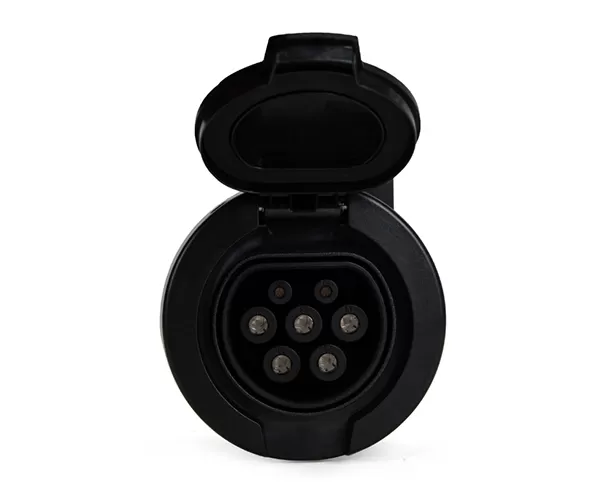

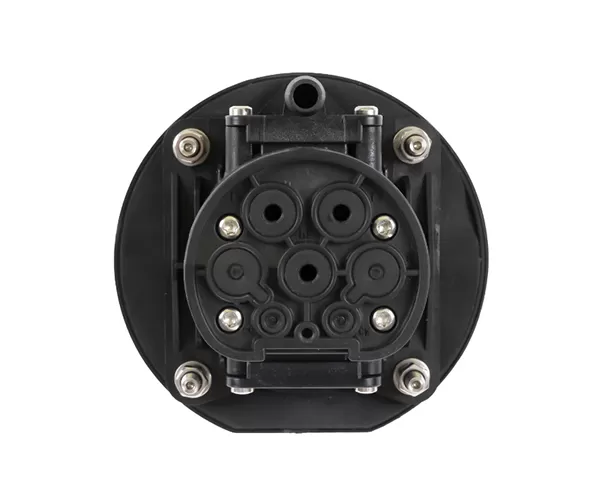

IEC AC Charging Socket

Name: IEC AC Charging Socket
Brand: Aupins Technology Co., Ltd.

IEC Charging Socket conforms to the provisions and requirements of IEC62196-2 2016. The socket has efficient charging and safety protection functions, built-in overheat protection, and a short circuit power-off system, providing all-around protection for your charging process. The appearance design is compact and easy to install, suitable for home and commercial use.

Get a Quote 

Features of IEC AC Charging Socket

IEC Charging Socket conforms to the provisions and requirements of IEC62196-1, IEC 62196 -3
Our ev socket with beautiful appearance and prevention cap, which can be installed on the left side, the right side or the front of it
Reliable material, flame retardant, pressure proof, wear-resisting, vimpact resistance, high oil proof
Excellent protection performance, protection grade achieved IP55 (working condition)

Applications of IEC AC Charging Socket

1. Mechanical properties:

Insertion and extraction force: <100N

Mechanical life: ≥10,000 times (no load)

Electronic lock life span: 30,000 times (rated voltage (12V/24V optional), power-on time 300ms, normal temperature)

2. Environmental performance:

Working temperature: -30℃～50℃

Protection level: IP54 when the cover is closed, IP55 when inserting the gun; IP65 for the electronic lock; IP67 for the cable outlet at the end of the charging stand

3. Electrical performance:

Rated voltage: AC input 250V.ac

Rated current: AC input: 16A, 32A

Insulation resistance: ＞1000MΩ (500V.dc)

Withstand voltage performance: 2000V.ac
