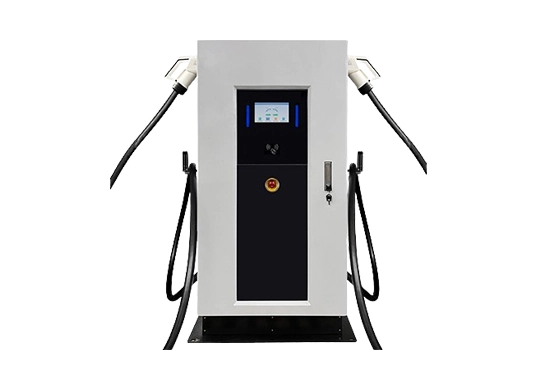

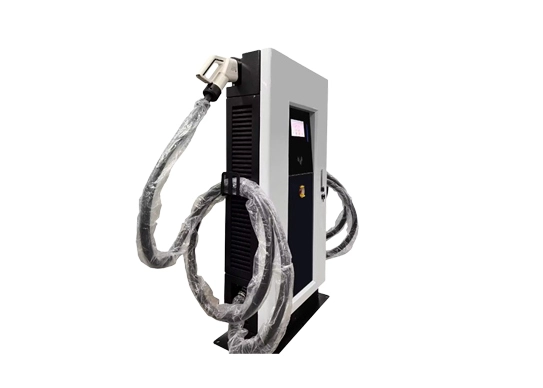

DC Charging Station-DD

Name: DC Charging Station-DD
Brand: AUPINS
Availability: InStock

As a professional supplier of new energy vehicle charging accessories, AUPINS is committed to providing services to achieve sustainable development in the electric vehicle (EV) industry. AUPINS's DC charger station has a built-in intelligent system that supports remote monitoring and operation, and the charging status is clear at a glance, and the operation is simple. It is compatible with most electric vehicle brands and models on the market, automatically matching charging solutions to ensure charging efficiency.

Get a Quote 

Features of DC Charging Station-DD

Low standby power consumption, the whole machine standby power consumption is less than 5w, reducing operating costs
Applicable to more models, compatible with DC input, and has wider application scenarios
Automatically adjust voltage and current to cooperate with electric vehicle BMS.
Connect to OCPP/cloud fast charging to achieve commercial OEM+ODM
Support QR code scanning and card swiping operations
Complete safety protection, the AC side can be disconnected in case of emergency shutdown, which is more reliable

Specifications of DC Charging Station-DD

DC charging station-DD
Code	Type	Output power(KW)	Output current(A)	Input current(A)	Display
20001	AP-TA-DC-40DD	40	0-133	0-64	7-inch color touchscreen
20002	AP-TA-DC-60DD	60	0-200	0-116
20003	AP-TA-DC-80DD	80	0-250	0-134
Charging protocol: GBT27930/CHADEMO 2.0/ DIN 70121 OCPP 1.6(JSON)/ISO 15118

Applications of DC Charging Station-DD

1. Mechanical properties:

Display: 7-inch color touchscreen

Input cable length: 0m (customizable)

Cable length: 5m (customizable)

Number of guns: one/two (CCS-1/CCS-2/CHAdeMO/GBT)

Charging mode: fast or slow charging, automatic switching

Charging mode: ARD/APP/manual

Weight: 35KG/45KG

Size(mm): 720*450*1600/730*500*1700

Interface standard: CCS /CHADEMO /GB/T

Standard configuration: CAN/485

Ethernet optional configuration: GPRS/4G

2. Electrical performance:

Output power: 40KW/60KW/80KW

Output voltage: 200-750V (200-1000V optional)

Output current: 0-133A/0-200A/0-250A

Input voltage: AC 380V±20%

Input current: 0-64A/0-116A/0-134A

Frequency: 50/60 Hz

3. Environmental performance:

Operating temperature: -20C to +50℃

Protection level: IP 54

Altitude: 2000m

Working relative humidity: RH≤95%

AUPINS provides high performance Automotive Hard Silver Plating and Connectors for You.
