Charging Socket

Charging Socket

Charging sockets are divided into vehicle-side sockets and pile-side sockets. They are divided into GB/T IEC SAE TESLA and CHAdeMO standards according to the country of use. They are divided into AC and DC sockets according to the voltage and current. AP can provide all the above standards. Products, and can provide OEM/ODM services according to customer needs. Samples can be sent out within 7 days at the fastest. AP sockets have been used in multiple products and have excellent market feedback.


Charging Socket Types

CHAdeMO DC Charging Socket

CHAdeMO DC Charging Socket

Complying with the CHAdeMO 2.0 standard, this product is used in Japanese standard electric vehicles. It integrates the signal terminals into one body and uses connectors to outlet the wires. The asse...
More Connectors
GB/T AC Charging Socket

GB/T AC Charging Socket

GB/T EV Charging Socket conforms to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in China, correctly and effectively with high compatibility.
More Connectors

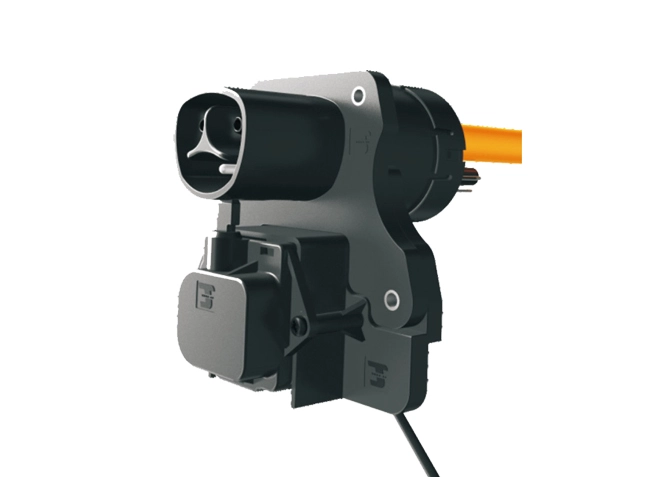

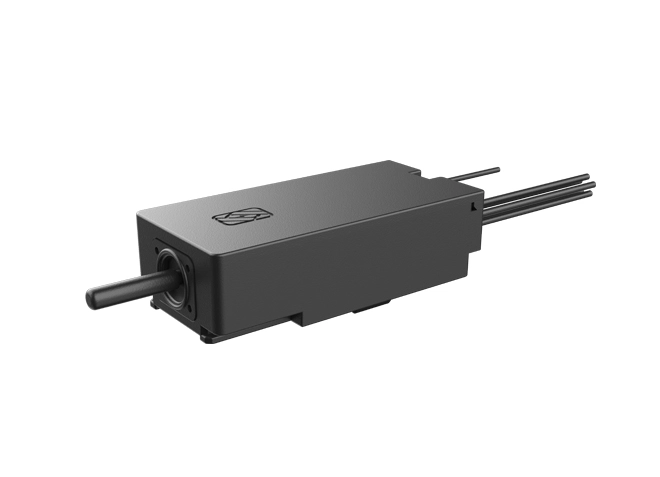

GB/T AC Electronic Lock

GB/T AC Electronic Lock

The electronic locks developed and produced by AUPINS are mainly used in national standard AC charging sockets on new energy vehicles and national standard pile charging sockets. During the product d...
More Connectors
GB/T DC Charging Socket

GB/T DC Charging Socket

GB/T EV Charging Socket conforms to the provisions and requirements of GB/T20234.2-2015, it can charge all EVs manufactured in China, correctly and effectively with high compatibility.
More Connectors
SAE AC Charging Socket

SAE AC Charging Socket

Conform to the provisions and requirements of SAE J1772-2012, It can applicable to all SAE electric vehicle charging guns.
More Connectors
CCS1 DC Charging Socket

CCS1 DC Charging Socket

Conform to the provisions and requirements of SAE J1772-2012, It can applicable to all American standard electric vehicle charging guns.
More Connectors

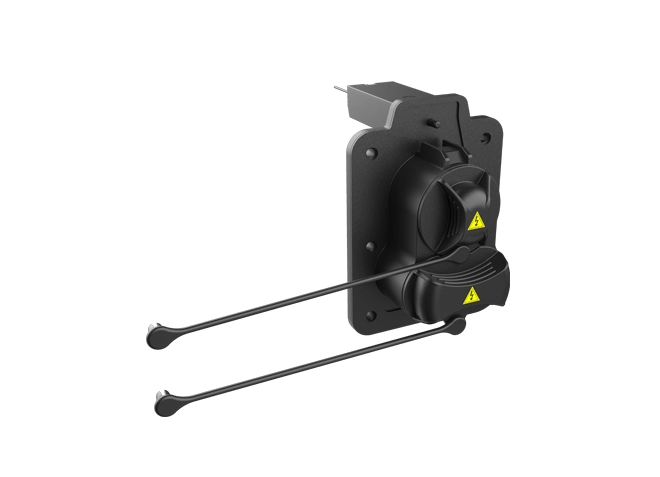

IEC AC Charging Socket

IEC AC Charging Socket

IEC Charging Socket conforms to the provisions and requirements of IEC62196-2 2016. The socket has efficient charging and safety protection functions, built-in overheat protection, and a short circuit...
More Connectors
CCS2 Charging Socket

CCS2 Charging Socket

IEC Charging Socket conforms to the provisions and requirements of IEC62196-2 2016. The socket has efficient charging and safety protection functions, built-in overheat protection, and a short circuit...
More Connectors

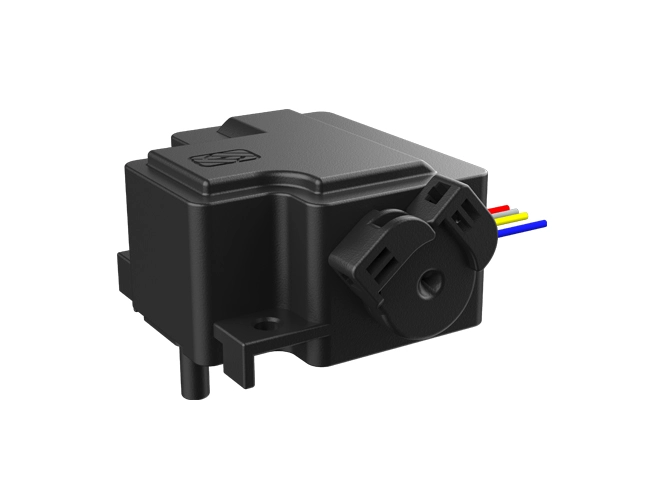

IEC Electronic Sockets

IEC Electronic Sockets

IEC electronic locks developed and produced by AUPINS are mainly used in IEC AC charging sockets at the end of new energy vehicles and IEC charging sockets at the pile end. During the product develop...
More Connectors
NACS Vehicle Charging Socket

NACS Vehicle Charging Socket

NACS charge inlet is for the electric vehicles adopt NACS charging standards. Its module design complies with the SAE J3400 standard. Cable length can be customized as a cu
More Connectors

Charging Socket Specifications


Charging Socket

Code

Type

Rated voltage

Rated current

Insulation resistance

11001

AP-GAC-CS

AC input：250V/440V

10A、16A、32A

2500V

11002

AP-GDC-CS

DC input: 750V

80A、125A、200A、250A

4500V

11003

AP-GDC-LOCK

12V.dc

≤1A

500Vac,1min

leakage current ≤10mA

11004

AP-SAC-CS

AC input：250V.ac

16A、32A

2500V.ac

11005

AP-SCCS1-CS

AC input：250V.ac

DC input:≤1000V.dc

AC input：16A、32A

DC input:125A、150A

3000V.ac

11006

AP-IAC-CS

AC input：250V.ac

AC input：16A、32A

2000V.ac

11007

AP-ICCS2-CS

AC input：250V.ac

DC input：1000V.dc


AC input：16A、32A

DC input:125A、150A、200A

3000V.ac

11008

AP-IDC-ES

12VDC

≤1A

500Vac,1min

leakage current ≤10mA

11009

AP-CHAdeMO-CS

DC input：750V.dc

80A，125A，150A，200A

3000V.ac
