CHARGE-UNI

CHARGE-UNI

As a professional supplier of new energy vehicle charging accessories, AUPINS is committed to providing services to achieve sustainable development in the electric vehicle (EV) industry. Its exclusive brand ”charge-uni“ focuses on tailoring efficient charging solutions for electric vehicle users, and its product line covers diversified products such as portable chargers, mobile DC electric vehicle chargers, and DC charging piles.

CHARGE-UNI Types

CHARGE-UNI Ensure full coverage and easily meet the charging needs of electric vehicles. Whether it is shopping malls, parks, and scenic spots in public areas of cities, long-distance rest areas in highway service areas; whether it is a parking lot for corporate use, or an exhibition area at a temporary event site, it can meet the various charging needs of electric vehicle users in different environments.

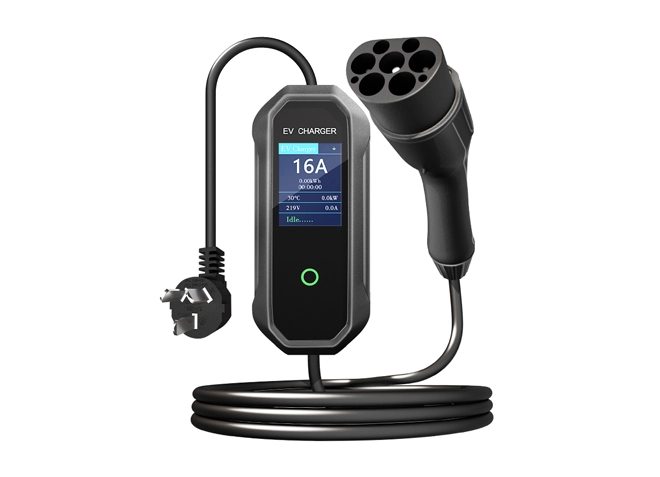

Mode 2 GBT Portable EV Charger

Mode 2 GBT Portable EV Charger

As China's new energy vehicle exports increase, the demand for GBT electric vehicle chargers is also increasing. As a professional new energy vehicle parts supplier, AUPINS continues to launch new...
More Connectors

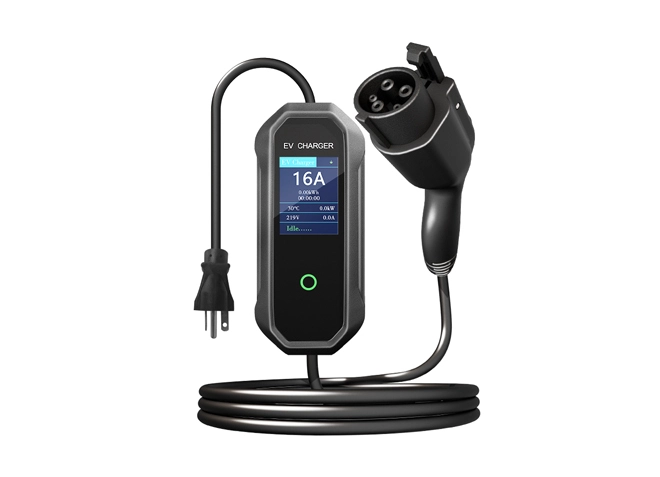

J1772 SAE Type 1 Portable EV Charger

J1772 SAE Type 1 Portable EV Charger

AUPINS's portable electric vehicle charger can meet customers' charging needs anytime and anywhere. The stylish appearance design and high-definition LED display enhance the product experience...
More Connectors

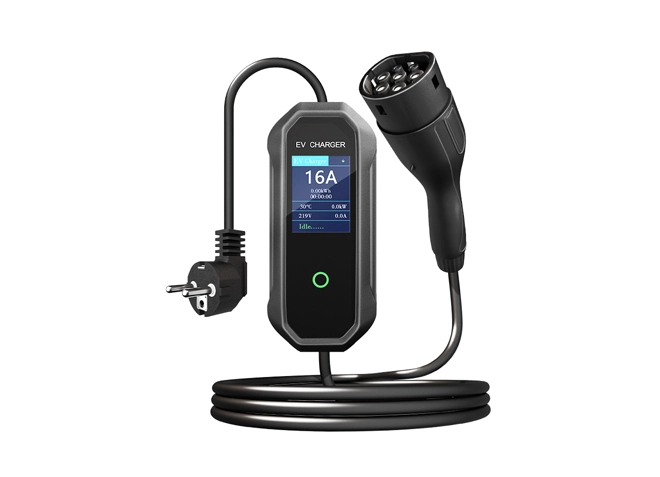

IEC62196 Type 2 Portable EV Charger

IEC62196 Type 2 Portable EV Charger

AUPINS IEC 62196 Type 2 portable EVSE charger meets the convenience, safety and charging efficiency concerns of electric vehicle owners. Use this high-quality charger to meet your individual charging ...
More Connectors

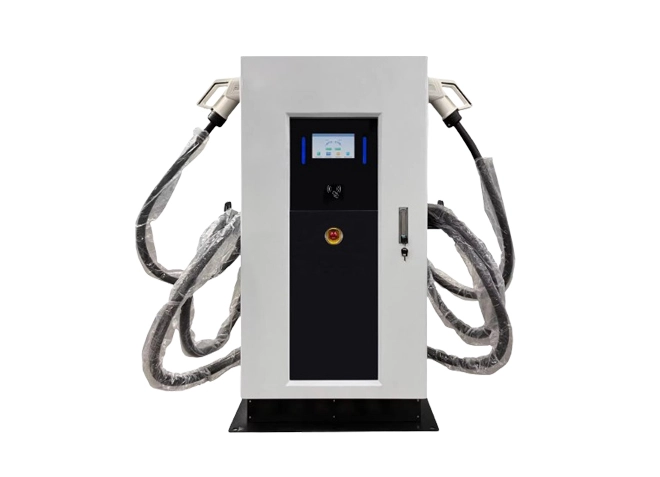

DC EV Charger

DC EV Charger

More Connectors

CHARGE-UNI Specification

Mode 2 GBT Portable EV Chargers

Code

Type

Output  power

Current（A)

Plug

interface

14001

AP-T1A-GBT-3.5KW

3.5

16

GBT cable

2.8 inches LCD color display (optional)

14002

AP-T1A-GBT-7KW

7

32

Blue CEE plug

14003

AP-T1A-GBT-11KW

11

16

Red CEE plug

14004

AP-T1A-GBT-22KW

22

32

Red CEE plug

14005

AP-T1B-GBT-3.5KW

3.5

16

GBT cable

indicator light screen

14006

AP-T1B-GBT-7KW

7

32

Blue CEE plug

14007

AP-T4B-GBT-3.5KW

3.5

16

GBT cable

2.8 inches LCD color display (optional)

14008

AP-T4B-GBT-7KW

7

32

Blue CEE plug

14009

AP-T4B-GBT-11KW

11

16

Red CEE plug

14010

AP-T4B-GBT-22KW

22

32

Red CEE plug

14011

AP-GBT-ZSD16

3.5

16

GBT cable

indicator light screen

14012

AP-GBT-ZSD32

7

32

Blue CEE plug


J1772 SAE Type 7 Portable EV Chargers

Code

Type

Output  power(MAX)

Current（A)

Plug

interface

15001

AP-T1A-TYPE1-16A

3.84

16

TYPE1 cable

2.8 inches LCD color display (optional)

15002

AP-T1A-TYPE1-32A

7.68

32

TYPE1 cable

15003

AP-T1A-TYPE1-40A

9.6

40

TYPE1 cable

15004

AP-T1B-TYPE1-16A

3.84

16

TYPE1 cable

15005

AP-T1B-TYPE1-32A

7.68

32

TYPE1 cable

15006

AP-T4B-TYPE1-16A

3.84

16

TYPE1 cable

15007

AP-T4B-TYPE1-32A

7.68

32

TYPE1 cable

15008

AP-T4B-TYPE1-40A

9.6

40

TYPE1 cable

15009

AP-TYPE1-ZSD16A

3.84

16

TYPE1 cable

indicator light screen

15010

AP-TYPE1-ZSD32A

7.68

32

TYPE1 cable


IEC62196 Type 2 Portable EV Chargers

Code

Type

Output  power

Current（A)

Plug

interface

16001

AP-T1A-TYPE2-3.5KW

3.5

16

IEC cable

2.8 inches LCD color display (optional)

16002

AP-T1A-TYPE2-7KW

7

32

Blue CEE plug

16003

AP-T1A-TYPE2-11KW

11

16

Red CEE plug

16004

AP-T1A-TYPE2-22KW

22

32

Red CEE plug

16005

AP-T1B-TYPE2-3.5KW

3.5

16

IEC cable

indicator light screen

16006

AP-T1B-TYPE2-7KW

7

32

Blue CEE plug

16007

AP-T1B-TYPE2-3.5KW

3.5

16

IEC cable

2.8 inches LCD color display (optional)

16008

AP-T4B-TYPE2-7KW

7

32

Blue CEE plug

16009

AP-T4B-TYPE2-11KW

11

16

Red CEE plug

16010

AP-T4B-TYPE2-22KW

22

32

Red CEE plug

16011

AP-TYPE2-ZSD16A

3.5

16

IEC cable

indicator light screen

16012

AP-TYPE2-ZSD32A

7

32

Blue CEE plug
