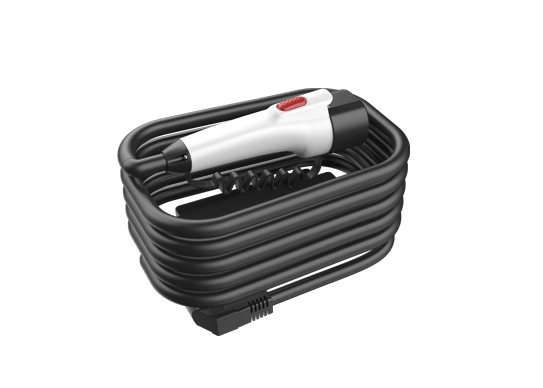

GB/T 16A/250V Portable Charger

Name: GB/T 16A/250V Portable Charger
Brand: Aupins Technology Co., Ltd.

This product is used in pure electric and plug-in hybrid vehicles to charge electric vehicles through the vehicle interface. Based on the conventional mode two charging gun, the three plugs are innovatively integrated with the on-cable control and protection device (IC-CPD). It is small in size, light in weight, and easier to carry and store.

Get a Quote 

Features of GB/T 16A/250V Portable Charger

Compatible with a variety of electric vehicles on the market to meet different needs
Suitable for charging in a variety of scenarios, easy to use
Plug-and-play, no complicated installation required
Efficient charging, improving user experience

Applications of GB/T 16A/250V Portable Charger

1. Mechanical properties:

Mechanical life: ≥10000 (no load)

Insertion and extraction force: <100N (gun-seat insertion and extraction)

2. Environmental performance:

Protection level: IP55

Protection functions: overvoltage protection, undervoltage protection, overcurrent protection, leakage protection, Over-temperature protection, grounding protection, short circuit protection

3. Electrical performance:

Rated voltage: 250V AC 50Hz

Rated current: 16A/10A

Insulation resistance: ＞10MΩ (500V DC 1min)

Withstand voltage: 2000V AC 1min without flashover breakdown
